At Connect Services, we provide cutting-edge portable and off-grid security & CCTV solutions, designed for the civil, construction, and mining industries. Our systems deliver 24/7 surveillance, WiFi, 45/5G Cellular coverage and local weather data even in the most remote locations, ensuring maximum site security, communications , visibility and monitoring.
Why Choose Our Solutions?
✅ Solar-Powered – Reliable and eco-friendly power for continuous operation.
✅ 4G Connectivity – Fast, real-time remote monitoring and alerts.
✅ Satellite Options – Stay connected in the most isolated locations.
✅ Cloud-Integrated – Can be fitted with client-selected cloud-based security and alarm technologies.
✅ Rapid Deployment – Quick and easy setup with no fixed infrastructure required.
✅ Scalable & Customizable – Solutions to fit projects of any size.
Whether you need site security, remote monitoring, or additional communications coverage, Connect Services delivers reliable, efficient, and cost-effective solutions tailored to your needs.
Make your site more safe, secure and accessible today – Contact us for a quote!
Portable Solutions – (Connect Portable Solutions)
The Connect Services portable solutions have been developed to ensure your site is effectively managed for surveillance and communications systems. With large capacity lithium batteries, high output solar panels and efficient MPPT charging systems all mounted on large concrete bases, these units are a premium solution to deliver trouble free operations no matter the locations. Each unit features easy transport options with suitable lift points and fork-lift tyne slots.

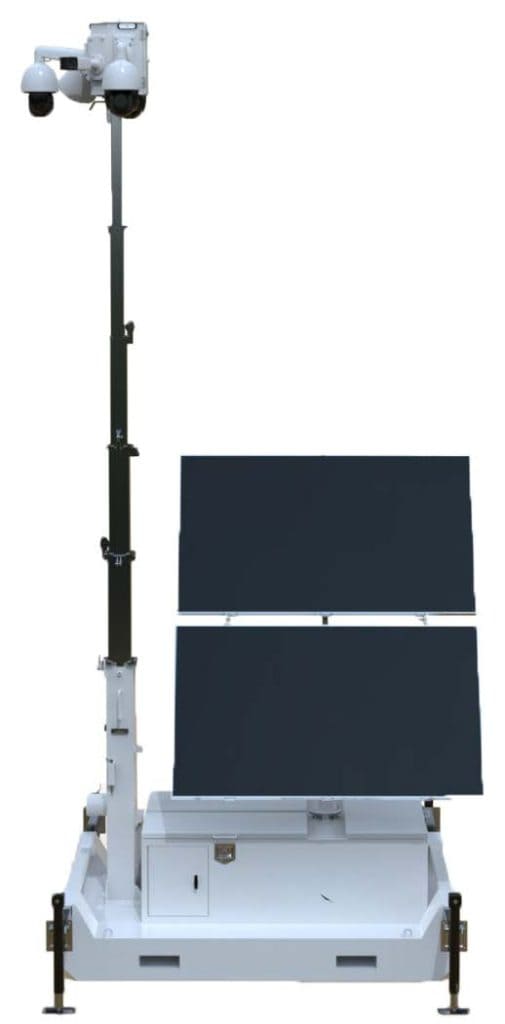

Off-Grid Site Surveillance
- Cameras/devices to suit any scenario
- Up to 4K video resolution
- Excellent night vision
- Time-lapse
- On board retention and cloud backup storage
- AI driven intruder detection w/ facial and vehicle recognition
- Multiple/simultaneous user access
- 24/7 agent monitoring with alerts/alarm notifications
- Solar Powered
- Large 770kg concrete base with forklift pockets and lifting point
- RPEQ certified construction
- 100Ah lithium battery
- Winch up mast 3.0m – total height 3.6m
- Cellular or Starlink connectivity
Trailer Solutions – (Connect Trailer Solutions)
Connect Services is very proud to be launching our trailer solutions in 2025. Developed to ensure long off grid operation even without significant sunlight for many days. Designed for easy transport behind any suitable tow vehicle, these units can be quickly deployed in any location to ensure surveilance and communications are establised for your site and staff protection.
Solar Surveillance Trailer Tower
CTS-01-900
| Solar Panel | 2 x 450W |
| Panel rotation | 330° |
| Panel Lifting | 30°/40°/50°/60° |
| Battery | 4 x 200Ah DC12V |
| Battery Capacity | 9600Wh 80% Doc |
| System Voltage | DC24V |
| Battery Charger | 1.5KW, 15A |
| CCTV BOX | Yes |
| 4G Router | Optional |
| Loud Speaker | Optional |
| Controller | 50A MPPT |
| Mast & Height | 6 Sections 7M/9M |
| Mast Lifting | Manual/Electric Winch |
| Trailer Standard | US/ AU/ EU |
| Hitch | 50mm Ball ALKO |
| Brake | Electric |
| Axle | Single ALKO |
| Tire | 14 inch |
| Outriggers | 4x |
| Lifting Ring | 4x |
| Forklift Holes | 6x |
| Working Temp | -35°C~60°C |
| Charging Time | 8.5 hours |
| Running Time | 5.3 days for 60W |
| Dimension (mm) | 3270*1675*3175 |
| Weight | ll00kgs |
| QTY in 20′ /40′ | 6 units/ 14 units |
Solar Surveillance Tower
CSS-01-900
| Solar Panel | 2 × 450W |
| Panel rotation | 330° |
| Panel Lifting | 30°/40°/50°/60° |
| Battery | 4 × 200Ah DC12V |
| Battery Capacity | 9600Wh 80% DoC |
| System Voltage | DC24V |
| Battery Charger | 1.5KW, 15A |
| CCTV BOX | Yes |
| 4G Router | Optional |
| Loud Speaker | Optional |
| Controller | 50A MPPT |
| Mast & Height | 6 Sections 7M/9M |
| Mast Lifting | Manual/Electric Winch |
| Trailer Standard | N/A |
| Hitch | N/A |
| Brake | N/A |
| Axle | N/A |
| Tire | N/A |
| Outriggers | 4 × |
| Lifting Ring | 4 × |
| Forklift Holes | 6× |
| Working Temp | -35°C~60°C |
| Charging Time | 8.5 hours |
| Running Time | 5.3 days for 60W |
| Dimension (mm) | 3270*1675*3175 |
| Weight | 1100kgs |
| QTY in 20′ /40′ | 6 units / 14 units |
